Transport tank for water and UAN 5000 l

Transport tank T-5000 E for water and UAN 5m3 (5000 l)

Various forms of payment are possible, including cashless payment with VAT. Sending goods by passing transport, pick-up or Nova Poshta.

We produce plastic transport tanks with a capacity of 500 to 5,000 liters. They are identical in appearance to our horizontal tanks, but their walls are thicker, and the stiffeners are reinforced accordingly. The tanks can be used as a reservoir for storing and transporting UAN (urea-ammonia mixture), caustic soda and other liquid fertilizers for agricultural needs.

The strength of the tank is ensured by reinforced walls (thicker than conventional horizontal tanks) and the shape of the product.

Product Description

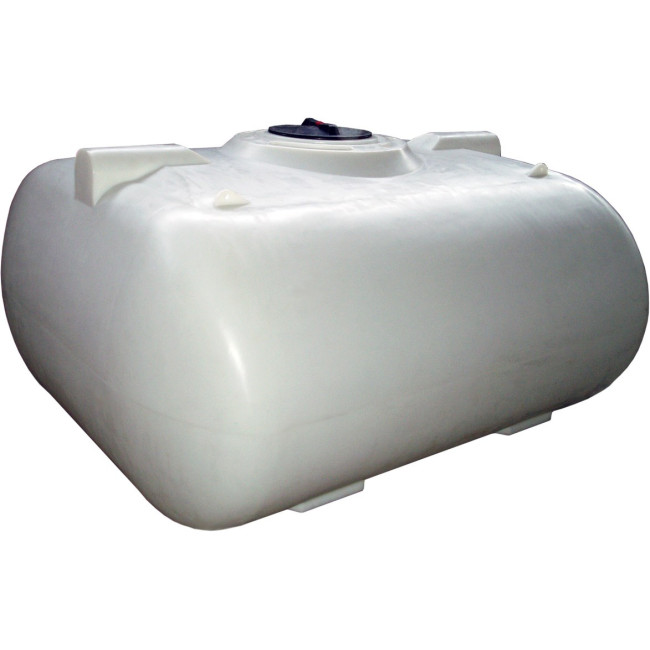

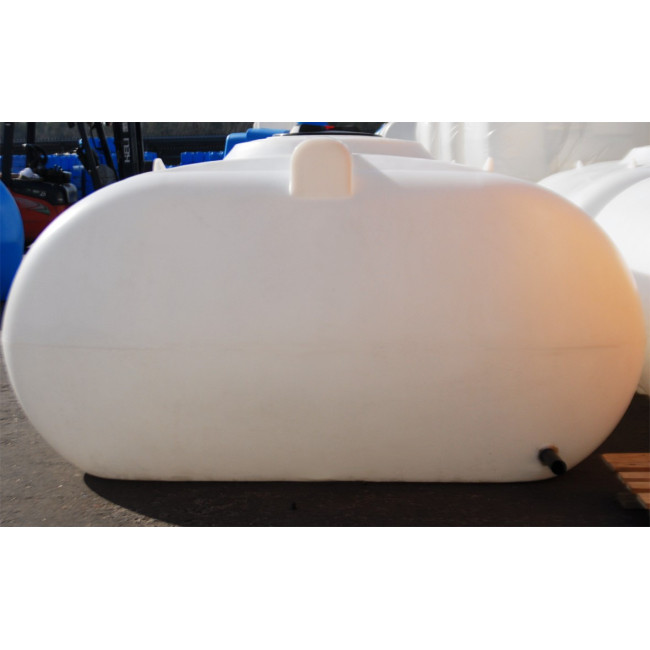

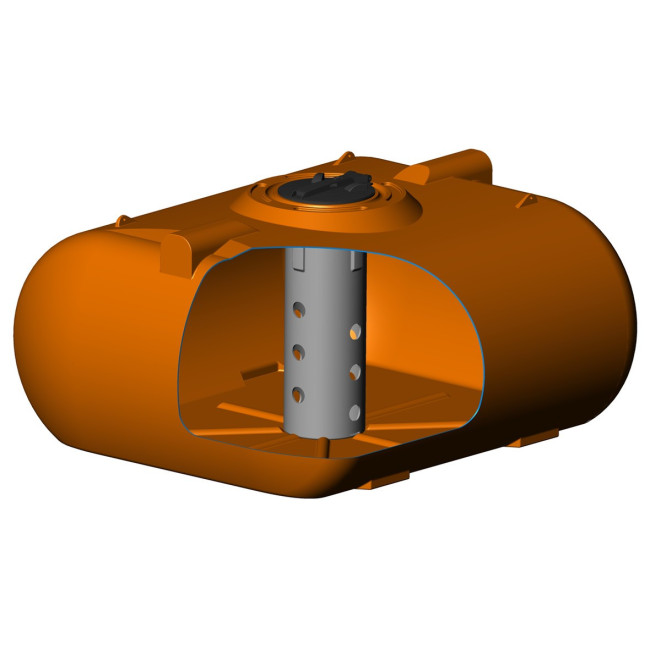

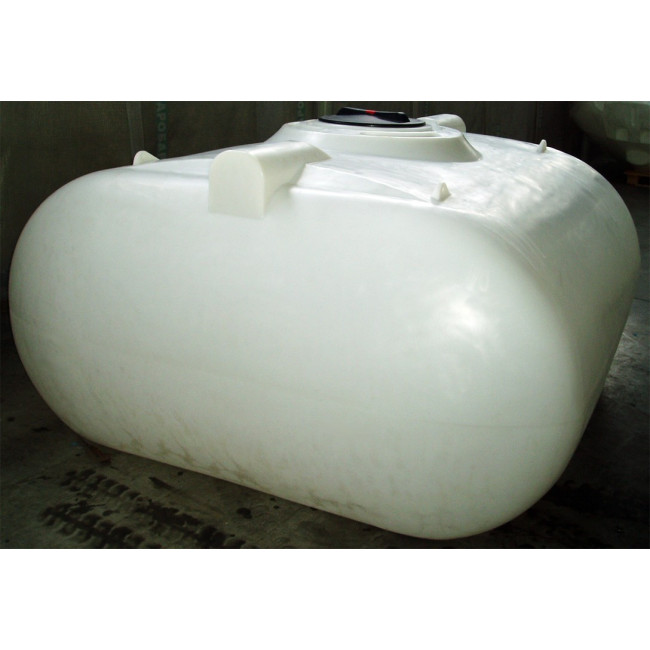

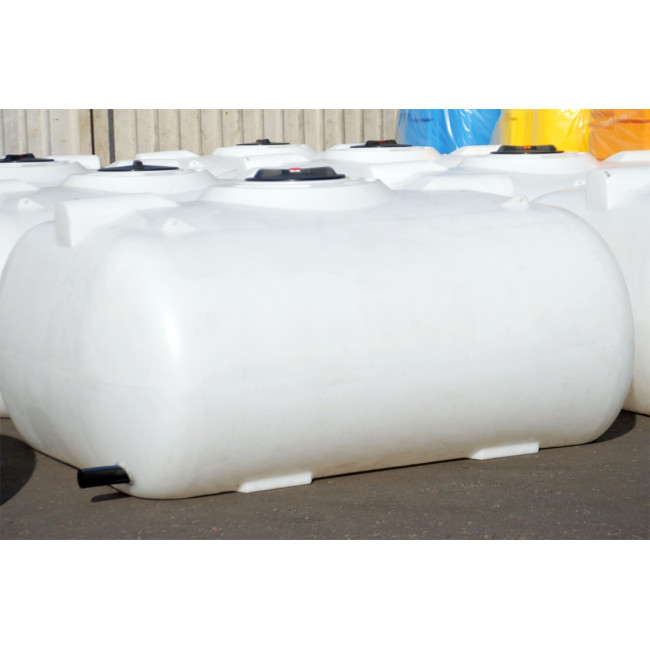

Polyethylene tank for transportation with a volume of 5000 liters. A special pipe is installed inside the tank to increase strength and absorb water impacts against the walls, which acts as a breakwater, prevents the spread of vibrations in the tank, providing protection against water hammer. This pipe also ensures a smooth and uniform process of filling the tank with liquid. The overall dimensions of the tank allow it to be installed on almost any truck. The optimal ratio of the length, width and height of the product ensures the stability of the vehicle, both when the tank is fully and partially filled.

This tank can be used to transport liquids with a specific gravity of up to 1.3.

The strength of the tank is ensured by reinforced walls (thicker than conventional horizontal tanks) and the shape of the product.

Characteristics

• Volume: 5000 l
• Length: 247 cm
• Width: 224 cm
• Height: 118 cm

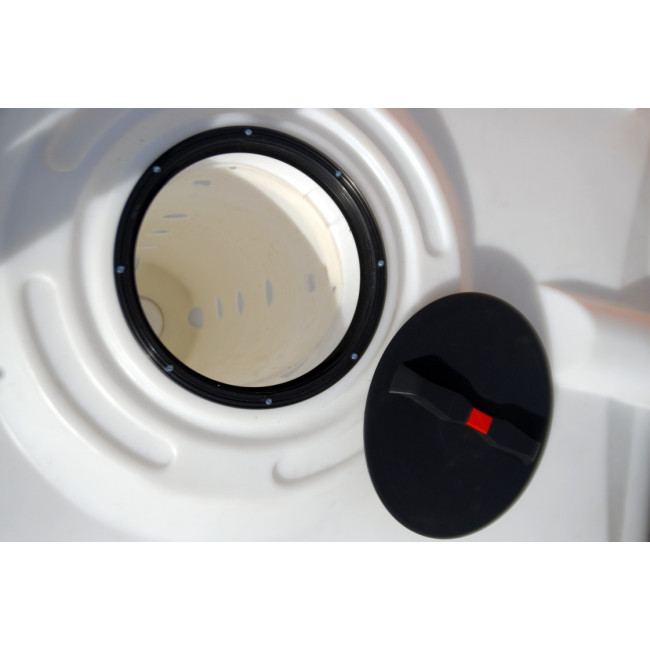

• Neck D: 40 cm
• Wall thickness: 9.5 mm

Material

HIGH-QUALITY
POLYETHYLENE

• high-strength
• frost-resistant (from -40°C to +60°C)
• food-grade
• ultraviolet-resistant

* SP - partitions are installed inside the tank.* To avoid liquid spillage through the lid breathing valve, the actual filling volume of the tank should be 5% less than its nominal volume.

The G-5000 AGRO SP and T-5000E tanks can be used to transport liquids with a specific gravity of up to 1.3.

Other options here

* SP - partitions are installed inside the tank.* To avoid spillage of liquid through the breather valve of the lid, the actual filling volume of the tank should be 5% less than its nominal volume.

The G-5000 AGRO SP and T-5000E tanks can be used to transport liquids with a specific gravity of up to 1.3.

The AGRO series tanks have passed bench tests at the Leonid Pogorelov Ukrainian Research Institute for Forecasting and Testing of Equipment and Technology for Agricultural Production

The tanks are intended for repeated use for storing and transporting liquids that are not hazardous, including drinking and industrial water.
The temperature of the transported liquid should be between 0 ° C and + 60 º C. The specific gravity of the liquid should be within 1 ± 1%. Tanks G-5000 AGRO, G-5000 AGRO SP, T-5000, G- 5000, G- 6000, G- 6700 can be used to transport liquids with a specific gravity of up to 1.3. The transportation speed is no more than 60 km / h. When transporting partially filled tanks, it is necessary to reduce the speed on turns, ascents, descents. To prevent water leaks through the breather valve of the lid, the actual filling volume of the tank must be 5% less than the nominal volume of liquid.
The G-5000 AGRO, G-5000 AGRO SP, T-5000, G- 5000, G- 6000, G- 6700 tanks are equipped with lids with an air valve. In other tanks, the lid has an air valve

* In the G - 5000 AGROSP tank, partitions - wave dampers are installed; A spacer pipe is installed in the T-5000, G-5000, G-6000, G-6700 tanks, which also acts as a wave damper and partially prevents water hammer in the tank lid.
** Product sizes may differ from the sizes indicated in the table. This is due to different shrinkage, which depends on the grade of polyethylene and environmental conditions: (temperature, humidity, etc.).

When installing tanks on the body of a vehicle, it is necessary to secure the tank with belts and provide stops that prevent the tank from shifting during movement. The connection of pipelines to tanks must be performed by a specialist with the appropriate qualifications, taking into account safety regulations.
